Thevenin Theorem

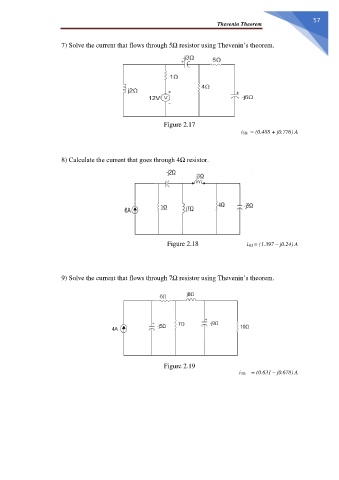

7) Solve the current that flows through 5Ω resistor using Thevenin’s theorem.
Figure 2.17
i5Ω = (0.488 + j0.776) A
8) Calculate the current that goes through 4Ω resistor.
Figure 2.18 i4Ω = (1.397 – j0.24) A
9) Solve the current that flows through 7Ω resistor using Thevenin’s theorem.
Figure 2.19
i7Ω = (0.631 – j0.678) A
