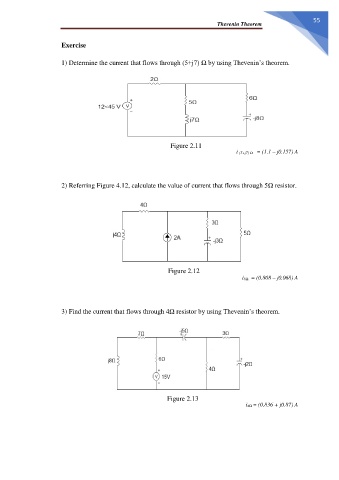

                                                                                                                       Thevenin Theorem

                       Exercise


                       1) Determine the current that flows through (5+j7) Ω by using Thevenin’s theorem.















                                                             Figure 2.11
                                                                                    i (5+j7) Ω   = (1.1 – j0.157) A




                       2) Referring Figure 4.12, calculate the value of current that flows through 5Ω resistor.
















                                                            Figure 2.12
                                                                                          i5Ω   = (0.808 – j0.068) A




                       3) Find the current that flows through 4Ω resistor by using Thevenin’s theorem.
















                                                            Figure 2.13
                                                                                       i4Ω = (0.836 + j0.87) A
