50

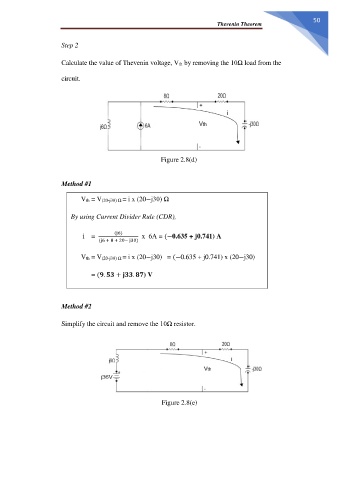

                                                                                                                       Thevenin Theorem

                       Step 2


                       Calculate the value of Thevenin voltage, Vth by removing the 10Ω load from the

                       circuit.















                                                          Figure 2.8(d)



                       Method #1

                                Vth = V(20-j30) Ω = i x (20−j30) Ω


                          By using Current Divider Rule (CDR),


                                 i    =    (j6)     x  6A = (−0.635 + j0.741) A
                                    (j6 + 8 + 20− j30)

                                Vth = V(20-j30) Ω = i x (20−j30)   = (−0.635 + j0.741) x (20−j30)



                                 = (  .      +       .     ) V



                       Method #2


                       Simplify the circuit and remove the 10Ω resistor.














                                                          Figure 2.8(e)
