47

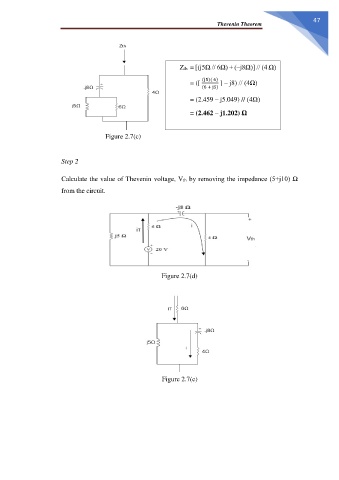

                                                                                                                       Thevenin Theorem






                                                                   Zth  = [(j5Ω // 6Ω) + (–j8Ω)] // (4 Ω)

                                                                    = ([  (j5)( 6)  ] – j8) // (4Ω)
                                                                        (6 + j5)
                                                                    = (2.459 – j5.049) // (4Ω)

                                                                    = (2.462 – j1.202) Ω


                                      Figure 2.7(c)


                       Step 2


                       Calculate the value of Thevenin voltage, Vth by removing the impedance (5+j10) Ω

                       from the circuit.
















                                                          Figure 2.7(d)



















                                                          Figure 2.7(e)
