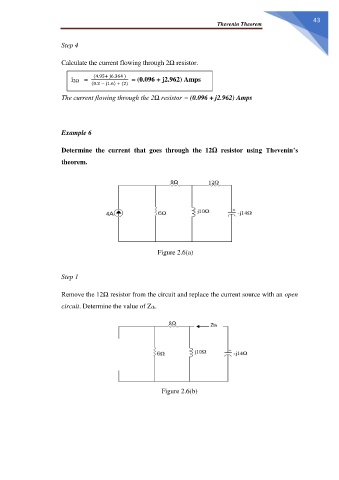

                                                                                                                       Thevenin Theorem

                       Step 4


                       Calculate the current flowing through 2Ω resistor.


                          i2Ω   =    (4.95+ j6.364 )    = (0.096 + j2.962) Amps
                                 (0.2 − j1.6) + (2)

                       The current flowing through the 2Ω resistor = (0.096 + j2.962) Amps




                       Example 6


                       Determine  the  current  that  goes  through  the  12Ω  resistor  using  Thevenin’s

                       theorem.
















                                                        Figure 2.6(a)



                       Step 1


                       Remove the 12Ω resistor from the circuit and replace the current source with an open
                       circuit. Determine the value of Zth.
















                                                          Figure 2.6(b)
