42

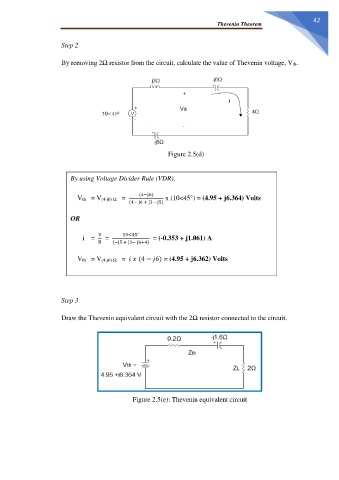

                                                                                                                       Thevenin Theorem

                       Step 2


                       By removing 2Ω resistor from the circuit, calculate the value of Thevenin voltage, Vth.

















                                                            Figure 2.5(d)


                          By using Voltage Divider Rule (VDR),


                              Vth    = V(4-j6) Ω   =    (4−j6)   x (10<45°) = (4.95 + j6.364) Volts
                                              (4− j6 + j3 – j5)

                          OR


                                    V
                                 i  =     =    10<45°    = (-0.353 + j1.061) A
                                    R   (−j5 + j3− j6+4)

                              Vth    = V(4-j6) Ω   =        (4 −   6) = (4.95 + j6.362) Volts






                       Step 3


                       Draw the Thevenin equivalent circuit with the 2Ω resistor connected to the circuit.















                                                Figure 2.5(e): Thevenin equivalent circuit
