Norton Theorem
Step 1
Find the Norton resistance, RN by removing the 4Ω resistor and replace the voltage
source with a short circuit.

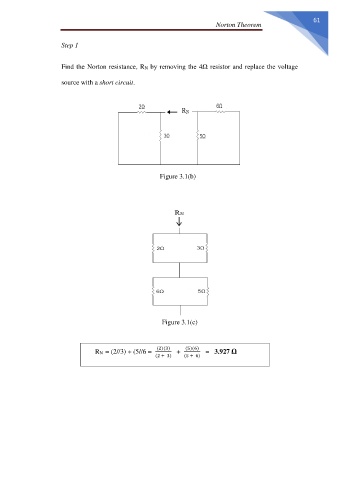

Figure 3.1(b)
Figure 3.1(c)
RN = (2//3) + (5//6 = (2)(3) + (5)(6) = 3.927 Ω
(2 + 3) (5 + 6)
