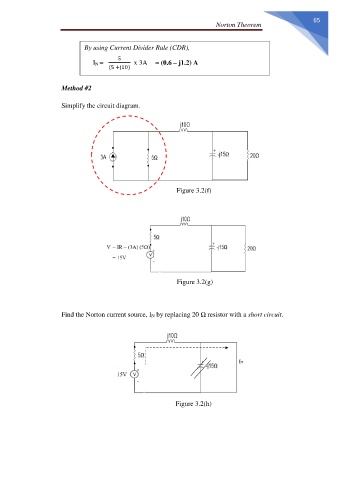

Norton Theorem
By using Current Divider Rule (CDR),
5
IN = x 3A = (0.6 – j1.2) A
(5 +j10)
Method #2
Simplify the circuit diagram.
Figure 3.2(f)
Figure 3.2(g)
Find the Norton current source, IN by replacing 20 Ω resistor with a short circuit.
Figure 3.2(h)
