67

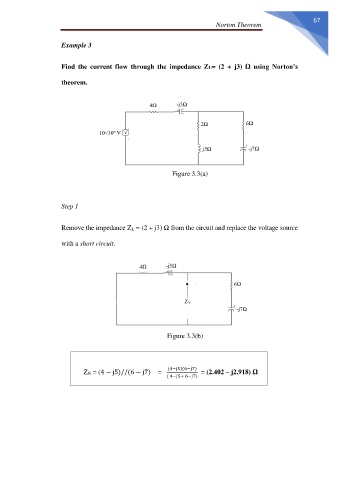

                                                                                                         Norton Theorem

                       Example 3



                       Find  the  current  flow  through  the  impedance  ZL=  (2  +  j3)  Ω  using  Norton’s


                       theorem.

















                                                              Figure 3.3(a)




                       Step 1



                       Remove the impedance ZL = (2 + j3) Ω from the circuit and replace the voltage source

                       with a short circuit.


















                                                            Figure 3.3(b)



                                                            (4−j5)(6−j7)
                                ZN = (4 − j5)//(6 − j7)      =          = (2.402 – j2.918) Ω
                                                            ( 4−j5+ 6−j7)
