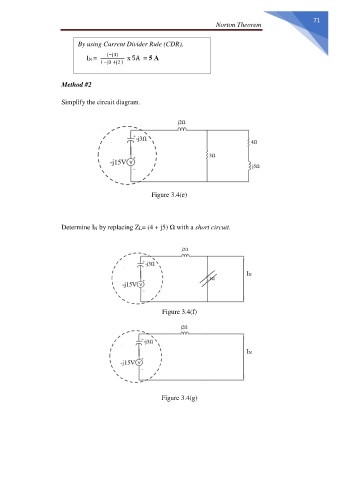

Norton Theorem
By using Current Divider Rule (CDR),
(−j3)
IN = ( −j3 +j2 ) x 5A = 5 A
Method #2
Simplify the circuit diagram.
Figure 3.4(e)
Determine IN by replacing ZL= (4 + j5) Ω with a short circuit.
Figure 3.4(f)
Figure 3.4(g)
