74

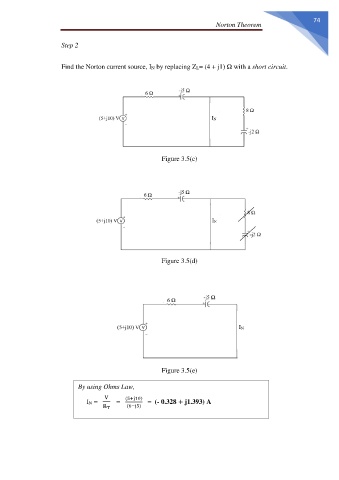

                                                                                                         Norton Theorem

                       Step 2



                       Find the Norton current source, IN by replacing ZL= (4 + j1) Ω with a short circuit.

















                                                          Figure 3.5(c)

















                                                          Figure 3.5(d)



















                                                          Figure 3.5(e)

                            By using Ohms Law,

                                      V      (5+j10)

                                 IN =          =        =  (- 0.328 + j1.393) A
                                     R T     (6−j5)
