68

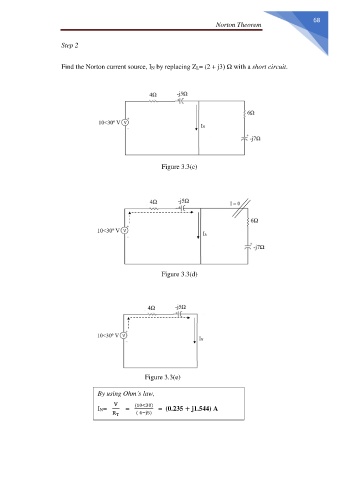

                                                                                                         Norton Theorem

                       Step 2



                       Find the Norton current source, IN by replacing ZL= (2 + j3) Ω with a short circuit.



















                                                          Figure 3.3(c)


















                                                          Figure 3.3(d)


















                                                    Figure 3.3(e)

                                   By using Ohm’s law,

                                         V      (10<30)
                                   IN=          =         =  (0.235 + j1.544) A
                                        R T      ( 4−j5)
