TOPIC 1: INTRODUCTION TO 555 TIMER

PIN CONFIGURATION

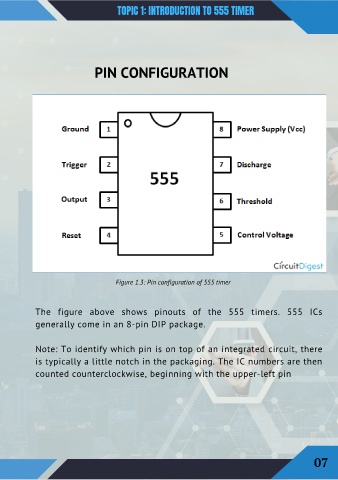

Figure 1.3: Pin configuration of 555 timer

The figure above shows pinouts of the 555 timers. 555 ICs

generally come in an 8-pin DIP package.

Note: To identify which pin is on top of an integrated circuit, there

is typically a little notch in the packaging. The IC numbers are then

counted counterclockwise, beginning with the upper-left pin
