89

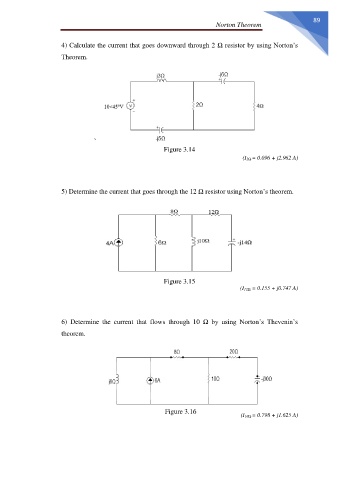

Norton Theorem
4) Calculate the current that goes downward through 2 Ω resistor by using Norton’s
Theorem.
`
Figure 3.14
(I2Ω = 0.096 + j2.962 A)
5) Determine the current that goes through the 12 Ω resistor using Norton’s theorem.
Figure 3.15
(I12Ω = 0.155 + j0.747 A)
6) Determine the current that flows through 10 Ω by using Norton’s Thevenin’s
theorem.
Figure 3.16
(I10Ω = 0.798 + j1.625 A)
