87

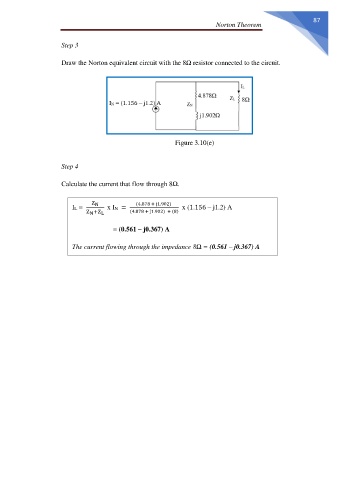

                                                                                                         Norton Theorem

                       Step 3


                       Draw the Norton equivalent circuit with the 8Ω resistor connected to the circuit.














                                                               Figure 3.10(e)



                       Step 4


                       Calculate the current that flow through 8Ω.

                                 Z               (4.878 + j1.902)
                          IL =    N     x IN  =                   x (1.156 – j1.2) A
                               Z +Z  L         (4.878 + j1.902)  + (8)
                                N

                                            = (0.561 – j0.367) A


                          The current flowing through the impedance 8Ω = (0.561 – j0.367) A
