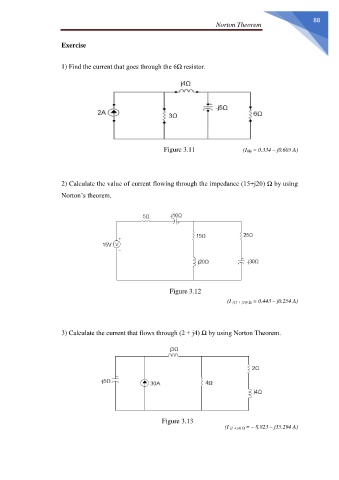

Norton Theorem
Exercise
1) Find the current that goes through the 6Ω resistor.
Figure 3.11 (I6Ω = 0.334 – j0.605 A)
2) Calculate the value of current flowing through the impedance (15+j20) Ω by using
Norton’s theorem.
Figure 3.12
(I (15 + j20) Ω = 0.443 – j0.254 A)
3) Calculate the current that flows through (2 + j4) Ω by using Norton Theorem.
Figure 3.13
(I (2 + j4) Ω = – 8.823 – j35.294 A)
