28

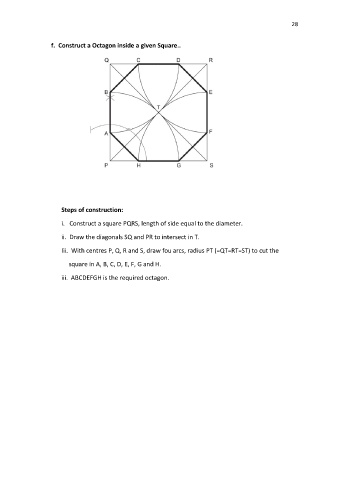

                   f.  Construct a Octagon inside a given Square..
























                       Steps of construction:

                       i.   Construct a square PQRS, length of side equal to the diameter.

                       ii.  Draw the diagonals SQ and PR to intersect in T.

                       Iii.  With centres P, Q, R and S, draw fou arcs, radius PT (=QT=RT=ST) to cut the

                                 square in A, B, C, D, E, F, G and H.

                       iii.  ABCDEFGH is the required octagon.
