26

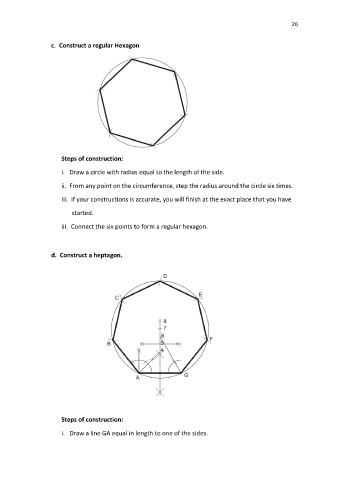

c. Construct a regular Hexagon

Steps of construction:

i. Draw a circle with radius equal to the length of the side.

ii. From any point on the circumference, step the radius around the circle six times.

Iii. If your constructions is accurate, you will finish at the exact place that you have

started.

iii. Connect the six points to form a regular hexagon.

d. Construct a heptagon.

Steps of construction:

i. Draw a line GA equal in length to one of the sides.
