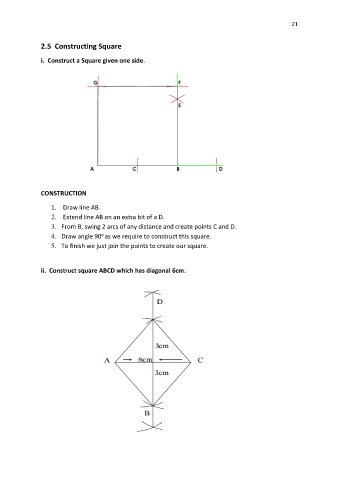

2.5 Constructing Square

i. Construct a Square given one side.

CONSTRUCTION

1. Draw line AB.
2. Extend line AB on an extra bit of a D.
3. From B, swing 2 arcs of any distance and create points C and D.
4. Draw angle 90 as we require to construct this square.
o
5. To finish we just join the points to create our square.

ii. Construct square ABCD which has diagonal 6cm.
