                                                                                                                       Thevenin Theorem

                       3) Draw the Thevenin equivalent circuit with the 4Ω resistor connected to the

                           circuit.

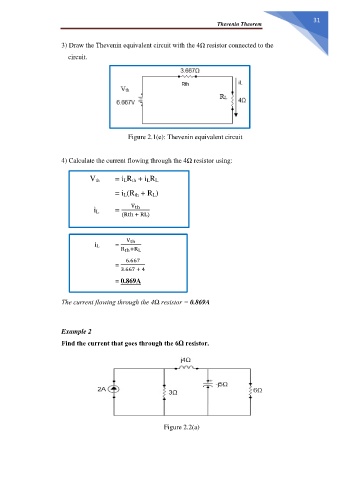

                                                              Figure 2.1(e): Thevenin equivalent circuit


                       4) Calculate the current flowing through the 4Ω resistor using:


                                   V th    = i LR th + i LR L

                                         = i L(R th + R L)

                                     i L    =   V th
                                            (Rth + RL)



                                    iL   =   V th
                                           R +R   L
                                             th

                                             6.667
                                         =  3.667 + 4
                                         = 0.869A



                       The current flowing through the 4Ω resistor = 0.869A



                       Example 2

                       Find the current that goes through the 6Ω resistor.
                                     = 3 + 0.67

                                  = 3.667Ω











                                                           Figure 2.2(a)
