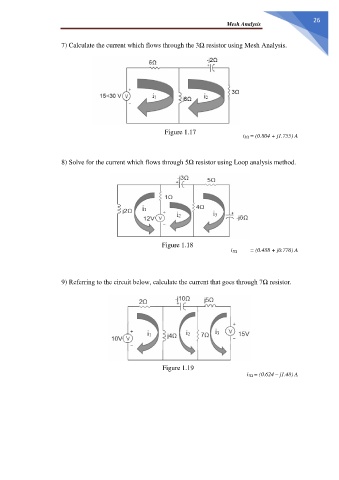

                                                                                                                                           Mesh Analysis

                       7) Calculate the current which flows through the 3Ω resistor using Mesh Analysis.
















                                                           Figure 1.17
                                                                                      i3Ω = (0.804 + j1.755) A



                       8) Solve for the current which flows through 5Ω resistor using Loop analysis method.















                                                          Figure 1.18
                                                                                      i5Ω    = (0.488 + j0.776) A



                       9) Referring to the circuit below, calculate the current that goes through 7Ω resistor.
















                                                          Figure 1.19
                                                                                        i7Ω = (0.624 – j1.48) A
