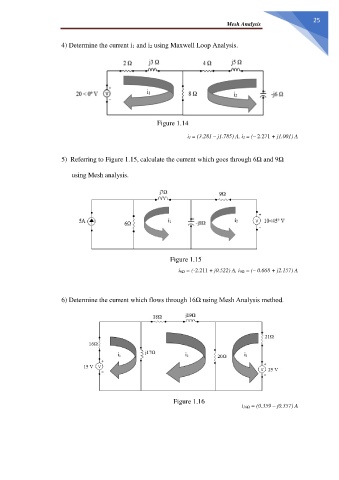

                                                                                                                                           Mesh Analysis

                       4) Determine the current i1 and i2 using Maxwell Loop Analysis.















                                                        Figure 1.14

                                                                   i1 = (3.281 – j1.785) A, i2 = (– 2.271 + j1.001) A



                       5)  Referring to Figure 1.15, calculate the current which goes through 6Ω and 9Ω


                             using Mesh analysis.















                                                             Figure 1.15

                                                                i6Ω = (-2.211 + j0.522) A, i9Ω = (– 0.668 + j2.157) A



                       6) Determine the current which flows through 16Ω using Mesh Analysis method.



















                                                              Figure 1.16
                                                                                       i16Ω = (0.359 – j0.357) A
