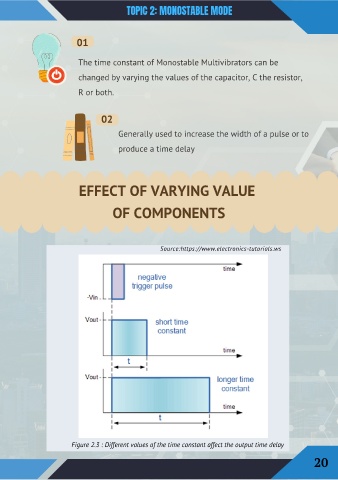

TOPIC 2: MONOSTABLE MODE
01
The time constant of Monostable Multivibrators can be
changed by varying the values of the capacitor, C the resistor,
R or both.
02
Generally used to increase the width of a pulse or to
produce a time delay
EFFECT OF VARYING VALUE
OF COMPONENTS
Source:https://www.electronics-tutorials.ws
Figure 2.3 : Different values of the time constant affect the output time delay
20
