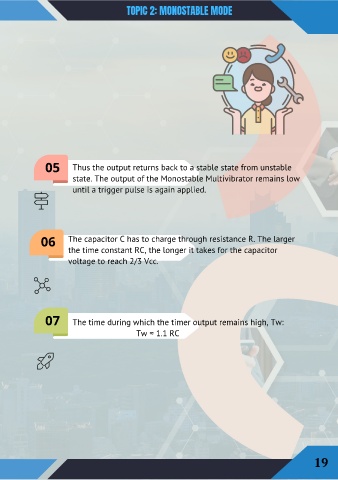

TOPIC 2: MONOSTABLE MODE
05 Thus the output returns back to a stable state from unstable
state. The output of the Monostable Multivibrator remains low
until a trigger pulse is again applied.
06 The capacitor C has to charge through resistance R. The larger
the time constant RC, the longer it takes for the capacitor
voltage to reach 2/3 Vcc.
07 The time during which the timer output remains high, Tw:
Tw ≈ 1.1 RC
