TOPIC 2: MONOSTABLE MODE

A BRIEF INTRODUCTION OF THE TIMER CIRCUIT

MONOSTABLE MODE TIMER CIRCUIT

Monostable multivibrator (MMV) mode of 555 timer IC is also called Single

shot mode. Only one state, as the names indicate, is stable, and the other

is known as an unstable or quasi-stable condition. 555 timer IC remains in
stable state until the external triggering is applied.

SCHEMATIC CIRCUIT

Source: Writer

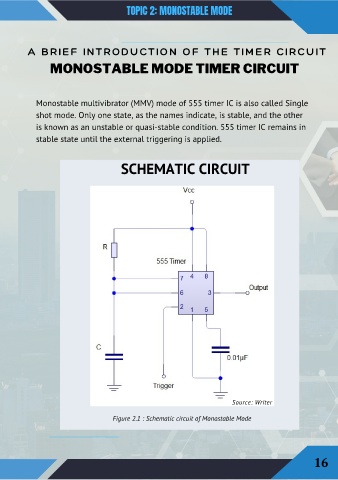

Figure 2.1 : Schematic circuit of Monostable Mode
