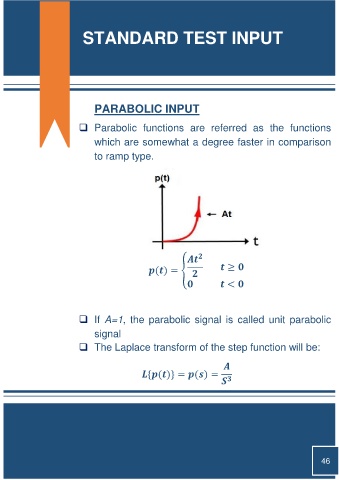

STANDARD TEST INPUT
PARABOLIC INPUT
❑ Parabolic functions are referred as the functions
which are somewhat a degree faster in comparison
to ramp type.
( ) = ቐ ≥
<
❑ If A=1, the parabolic signal is called unit parabolic
signal
❑ The Laplace transform of the step function will be:
{ ( )} = ( ) =
46
