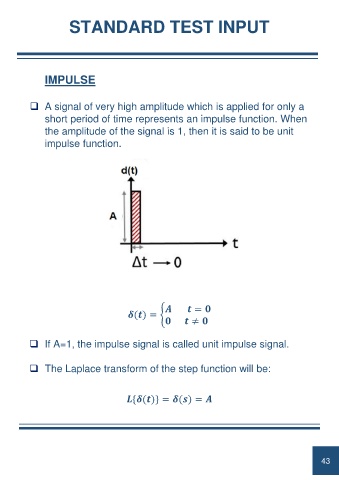

STANDARD TEST INPUT

IMPULSE

❑ A signal of very high amplitude which is applied for only a

short period of time represents an impulse function. When

the amplitude of the signal is 1, then it is said to be unit
impulse function.

=
( ) = ቊ
≠

❑ If A=1, the impulse signal is called unit impulse signal.

❑ The Laplace transform of the step function will be:

{ ( )} = ( ) =

43
