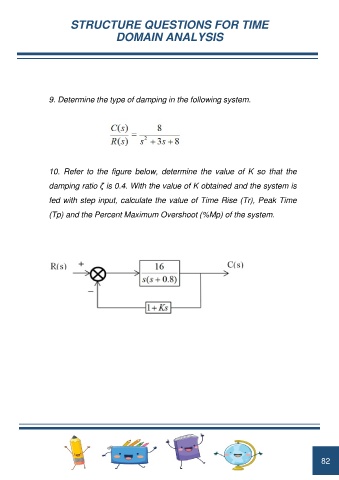

STRUCTURE QUESTIONS FOR TIME
DOMAIN ANALYSIS
9. Determine the type of damping in the following system.
10. Refer to the figure below, determine the value of K so that the
damping ratio ζ is 0.4. With the value of K obtained and the system is
fed with step input, calculate the value of Time Rise (Tr), Peak Time
(Tp) and the Percent Maximum Overshoot (%Mp) of the system.
