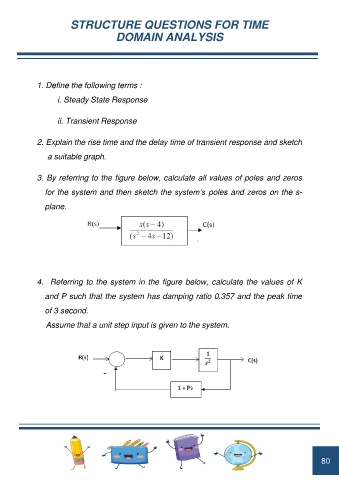

STRUCTURE QUESTIONS FOR TIME

DOMAIN ANALYSIS

1. Define the following terms :

i. Steady State Response

ii. Transient Response

2. Explain the rise time and the delay time of transient response and sketch

a suitable graph.

3. By referring to the figure below, calculate all values of poles and zeros

for the system and then sketch the system’s poles and zeros on the s-

plane.

4. Referring to the system in the figure below, calculate the values of K

and P such that the system has damping ratio 0.357 and the peak time

of 3 second.

Assume that a unit step input is given to the system.

80
