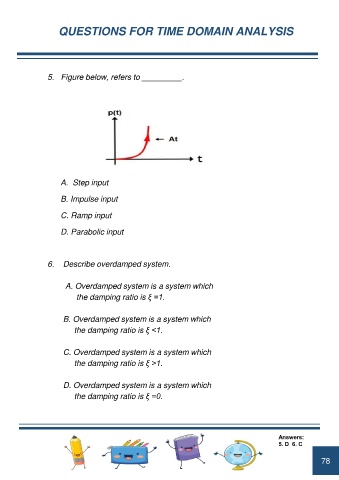

QUESTIONS FOR TIME DOMAIN ANALYSIS
5. Figure below, refers to _________.
A. Step input
B. Impulse input
C. Ramp input
D. Parabolic input
6. Describe overdamped system.
A. Overdamped system is a system which
the damping ratio is ξ =1.
B. Overdamped system is a system which
the damping ratio is ξ <1.
C. Overdamped system is a system which
the damping ratio is ξ >1.
D. Overdamped system is a system which
the damping ratio is ξ =0.
78
.
