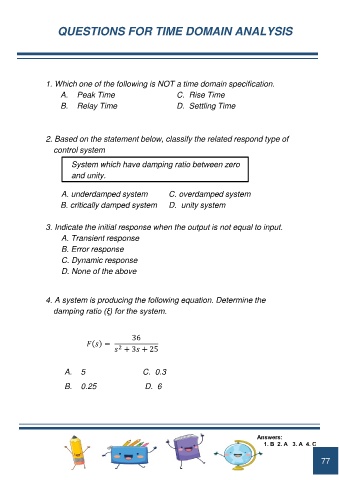

QUESTIONS FOR TIME DOMAIN ANALYSIS

1. Which one of the following is NOT a time domain specification.

A. Peak Time C. Rise Time
B. Relay Time D. Settling Time

2. Based on the statement below, classify the related respond type of
control system

System which have damping ratio between zero

and unity.

A. underdamped system C. overdamped system
B. critically damped system D. unity system

3. Indicate the initial response when the output is not equal to input.
A. Transient response

B. Error response
C. Dynamic response
D. None of the above

4. A system is producing the following equation. Determine the
damping ratio (ξ) for the system.

36
=
2
+ 3 + 25

A. 5 C. 0.3

B. 0.25 D. 6
