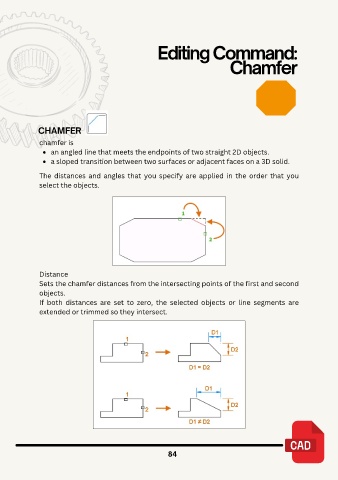

Editing Command:
Chamfer
CHAMFER
chamfer is
an angled line that meets the endpoints of two straight 2D objects.
a sloped transition between two surfaces or adjacent faces on a 3D solid.
The distances and angles that you specify are applied in the order that you
select the objects.
Distance
Sets the chamfer distances from the intersecting points of the first and second
objects.
If both distances are set to zero, the selected objects or line segments are
extended or trimmed so they intersect.
84
