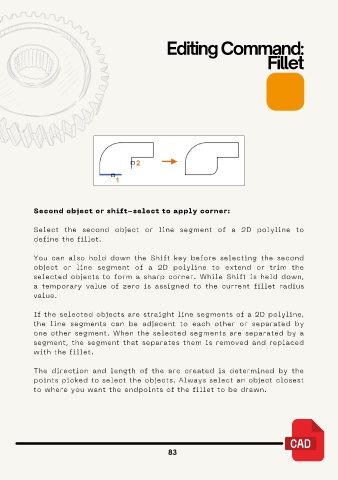

Editing Command:
Fillet
Second object or shift-select to apply corner:
Select the second object or line segment of a 2D polyline to
define the fillet.
You can also hold down the Shift key before selecting the second
object or line segment of a 2D polyline to extend or trim the
selected objects to form a sharp corner. While Shift is held down,
a temporary value of zero is assigned to the current fillet radius
value.
If the selected objects are straight line segments of a 2D polyline,
the line segments can be adjacent to each other or separated by
one other segment. When the selected segments are separated by a
segment, the segment that separates them is removed and replaced
with the fillet.
The direction and length of the arc created is determined by the
points picked to select the objects. Always select an object closest
to where you want the endpoints of the fillet to be drawn.
