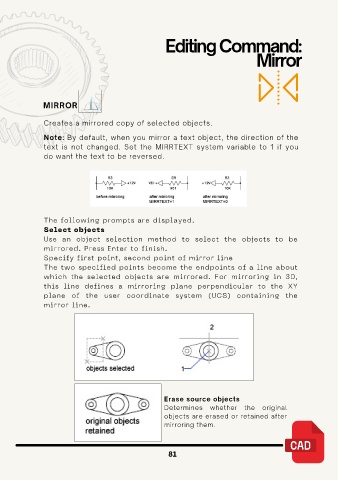

Page 87 - Autocad 2D Basic - Ebook

Editing Command:

Mirror

MIRROR

Creates a mirrored copy of selected objects.

Note: By default, when you mirror a text object, the direction of the
text is not changed. Set the MIRRTEXT system variable to 1 if you
do want the text to be reversed.

The following prompts are displayed.
Select objects
Use an object selection method to select the objects to be
mirrored. Press Enter to finish.
Specify first point, second point of mirror line
The two specified points become the endpoints of a line about
which the selected objects are mirrored. For mirroring in 3D,
this line defines a mirroring plane perpendicular to the XY
plane of the user coordinate system (UCS) containing the

mirror line.

Erase source objects
Determines whether the original
objects are erased or retained after
mirroring them.

81
