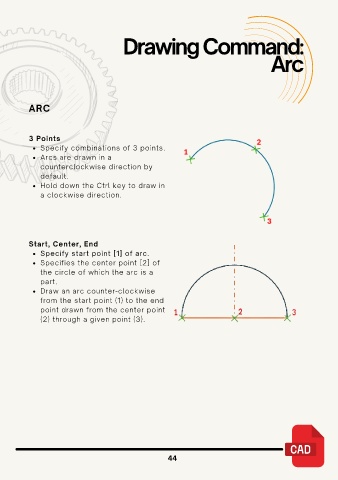

Drawing Command:


                                                                                                Arc










           ARC





           3 Points
               Specify combinations of 3 points.
               Arcs are drawn in a
               counterclockwise direction by
               default.
               Hold down the Ctrl key to draw in
               a clockwise direction.









           Start, Center, End
               Specify start point [1] of arc.
               Specifies the center point [2] of
               the circle of which the arc is a
               part.
               Draw an arc counter-clockwise
               from the start point (1) to the end
               point drawn from the center point
               (2) through a given point (3).
