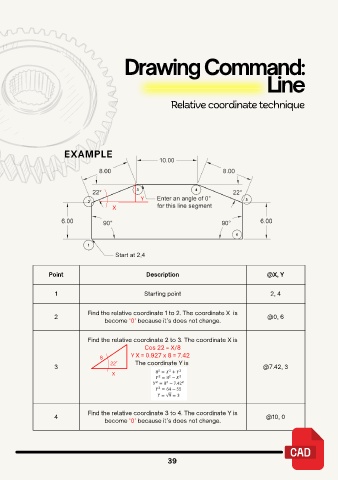

Drawing Command:

Line

Relative coordinate technique

EXAMPLE

Y
X

Point Description @X, Y

1 Starting point 2, 4

Find the relative coordinate 1 to 2. The coordinate X is
2 @0, 6
become ‘0’ because it’s does not change.

Find the relative coordinate 2 to 3. The coordinate X is
Cos 22 = X/8
8 Y X = 0.927 x 8 = 7.42
22˚ The coordinate Y is
3 @7.42, 3
X

Find the relative coordinate 3 to 4. The coordinate Y is
4 @10, 0
become ‘0’ because it’s does not change.

39
