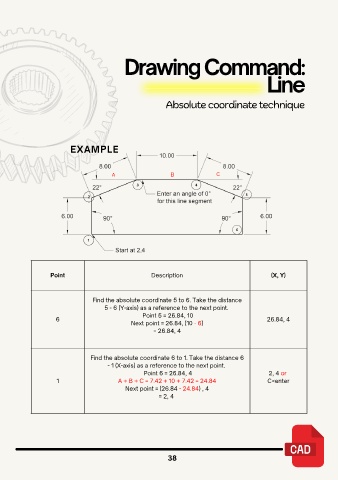

Drawing Command:

Line

Absolute coordinate technique

EXAMPLE

A B C

Point Description (X, Y)

Find the absolute coordinate 5 to 6. Take the distance
5 - 6 (Y-axis) as a reference to the next point.
Point 5 = 26.84, 10
6 26.84, 4
Next point = 26.84, (10 - 6)
= 26.84, 4

Find the absolute coordinate 6 to 1. Take the distance 6
- 1 (X-axis) as a reference to the next point.
Point 6 = 26.84, 4 2, 4 or
1 A + B + C = 7.42 + 10 + 7.42 = 24.84 C<enter
Next point = (26.84 - 24.84) , 4
= 2, 4

38
