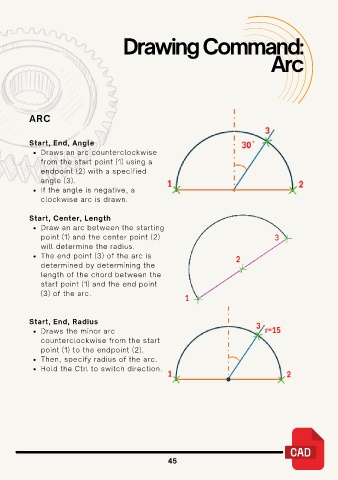

Drawing Command:

Arc

ARC

Start, End, Angle
Draws an arc counterclockwise
from the start point (1) using a
endpoint (2) with a specified
angle (3).
If the angle is negative, a
clockwise arc is drawn.

Start, Center, Length
Draw an arc between the starting
point (1) and the center point (2)
will determine the radius.
The end point (3) of the arc is
determined by determining the
length of the chord between the
start point (1) and the end point

(3) of the arc.

Start, End, Radius
Draws the minor arc
counterclockwise from the start
point (1) to the endpoint (2).
Then, specify radius of the arc.
Hold the Ctrl to switch direction.

45
