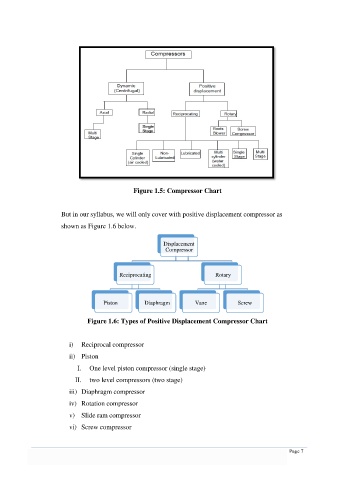

Figure 1.5: Compressor Chart

But in our syllabus, we will only cover with positive displacement compressor as

shown as Figure 1.6 below.

Displacement
Compressor

Reciprocating Rotary

Piston Diaphragm Vane Screw

Figure 1.6: Types of Positive Displacement Compressor Chart

i) Reciprocal compressor
ii) Piston

I. One level piston compressor (single stage)
II. two level compressors (two stage)

iii) Diaphragm compressor

iv) Rotation compressor
v) Slide ram compressor

vi) Screw compressor
