iv. Cost
a. Compressed air is an expensive to produce
v. Exhaust air
a. Noisy sound from the oil mist with compressed air escapes with the exhaust
to the atmosphere

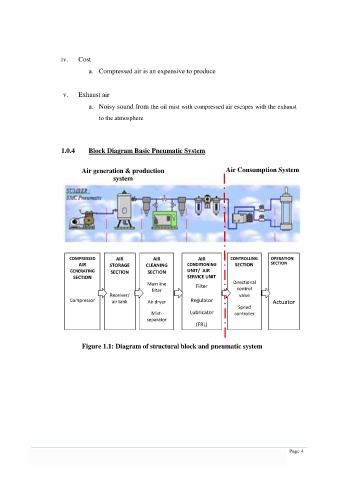

1.0.4 Block Diagram Basic Pneumatic System
Air generation & production Air Consumption System
system
COMPRESSED AIR AIR AIR CONTROLLING OPERATION
AIR STORAGE CLEANING CONDITIONING SECTION SECTION
GENERATING SECTION SECTION UNIT/ AIR
SECTION SERVICE UNIT
Main line Filter Directional
filter control
Receiver/ valve
Compressor air tank Air dryer Regulator Actuator
Speed
Mist- Lubricator controller
separator
(FRL)
Figure 1.1: Diagram of structural block and pneumatic system
