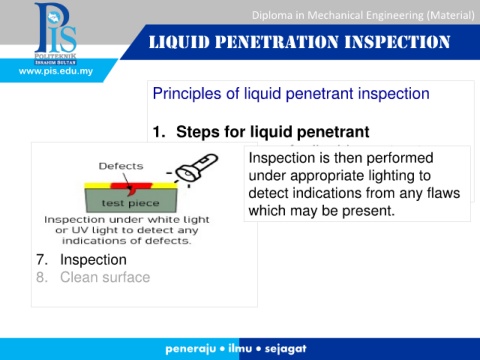

LIQUID PENETRATION INSPECTION

www.pis.edu.my

Principles of liquid penetrant inspection

1. Steps for liquid penetrant

2. Common users for liquid penetrant
1. Surface preparation Inspection is then performed
3. Advantages and disadvantages
2. Penetrant application under appropriate lighting to

3. Penetrant dwelling time detect indications from any flaws

4. Excess penetrant removal which may be present.

5. Developer application

6. Indication development

7. Inspection

8. Clean surface
