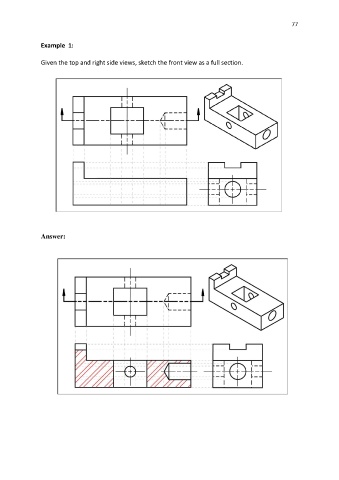

               Example  1:


               Given the top and right side views, sketch the front view as a full section.




































               Answer:
