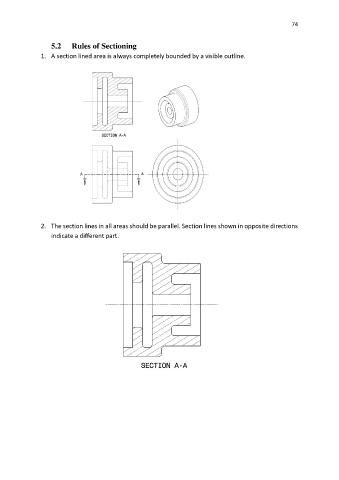

                   5.2    Rules of Sectioning

               1.  A section lined area is always completely bounded by a visible outline.
























               2.  The section lines in all areas should be parallel. Section lines shown in opposite directions
                   indicate a different part.
