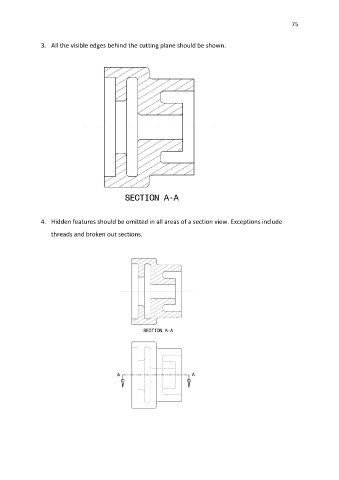

3. All the visible edges behind the cutting plane should be shown.
4. Hidden features should be omitted in all areas of a section view. Exceptions include
threads and broken out sections.
