68

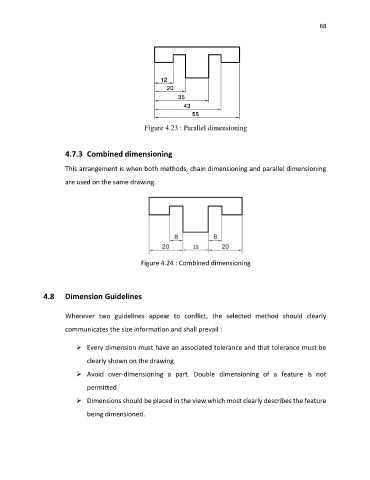

Figure 4.23 : Parallel dimensioning

4.7.3 Combined dimensioning

This arrangement is when both methods, chain dimensioning and parallel dimensioning

are used on the same drawing.

Figure 4.24 : Combined dimensioning

4.8 Dimension Guidelines

Wherever two guidelines appear to conflict, the selected method should clearly

communicates the size information and shall prevail :

➢ Every dimension must have an associated tolerance and that tolerance must be

clearly shown on the drawing
➢ Avoid over-dimensioning a part. Double dimensioning of a feature is not

permitted

➢ Dimensions should be placed in the view which most clearly describes the feature

being dimensioned.
