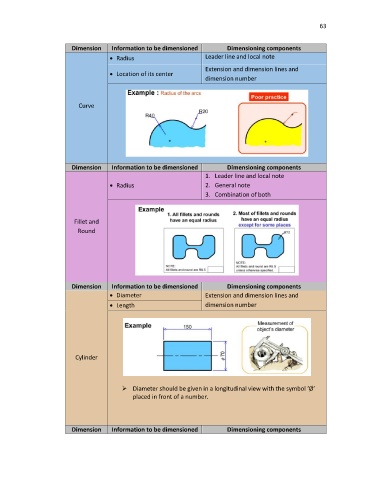

Page 70 - ENGINEERING DRAWING

63

Dimension Information to be dimensioned Dimensioning components
• Radius Leader line and local note

Extension and dimension lines and
• Location of its center
dimension number

Curve

Dimension Information to be dimensioned Dimensioning components
1. Leader line and local note
• Radius 2. General note
3. Combination of both

Fillet and
Round

Dimension Information to be dimensioned Dimensioning components
• Diameter Extension and dimension lines and
• Length dimension number

Cylinder

➢ Diameter should be given in a longitudinal view with the symbol ‘Ø’
placed in front of a number.

Dimension Information to be dimensioned Dimensioning components
