Procedure :
➢ Draw the circle of diameter 40 mm touching XY line.
➢ Draw the plan projecting it from the elevation.
➢ Draw the end view by drawing projection on it, from the plan and elevation.
➢ Draw the plan, elevation and side view of a cylinder whose base diameter 30
mm and height 50 mm when its position is.

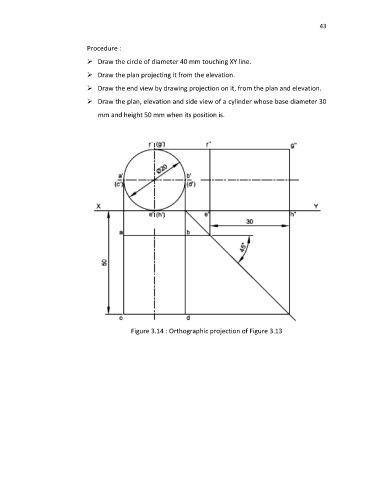

Figure 3.14 : Orthographic projection of Figure 3.13
