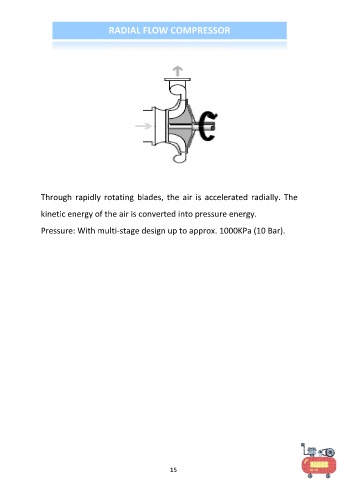

RADIAL FLOW COMPRESSOR
Through rapidly rotating blades, the air is accelerated radially. The
kinetic energy of the air is converted into pressure energy.
Pressure: With multi-stage design up to approx. 1000KPa (10 Bar).
