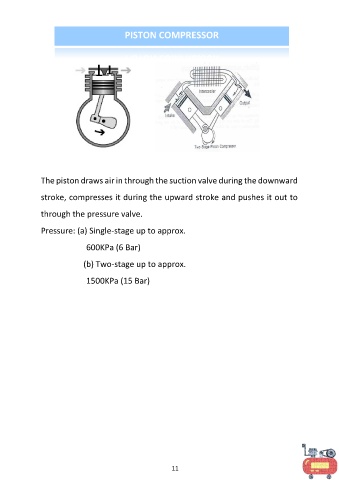

PISTON COMPRESSOR
The piston draws air in through the suction valve during the downward
stroke, compresses it during the upward stroke and pushes it out to
through the pressure valve.
Pressure: (a) Single-stage up to approx.
600KPa (6 Bar)
(b) Two-stage up to approx.
1500KPa (15 Bar)
