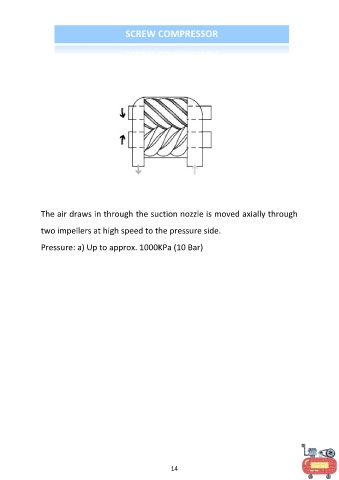

SCREW COMPRESSOR
The air draws in through the suction nozzle is moved axially through
two impellers at high speed to the pressure side.
Pressure: a) Up to approx. 1000KPa (10 Bar)
